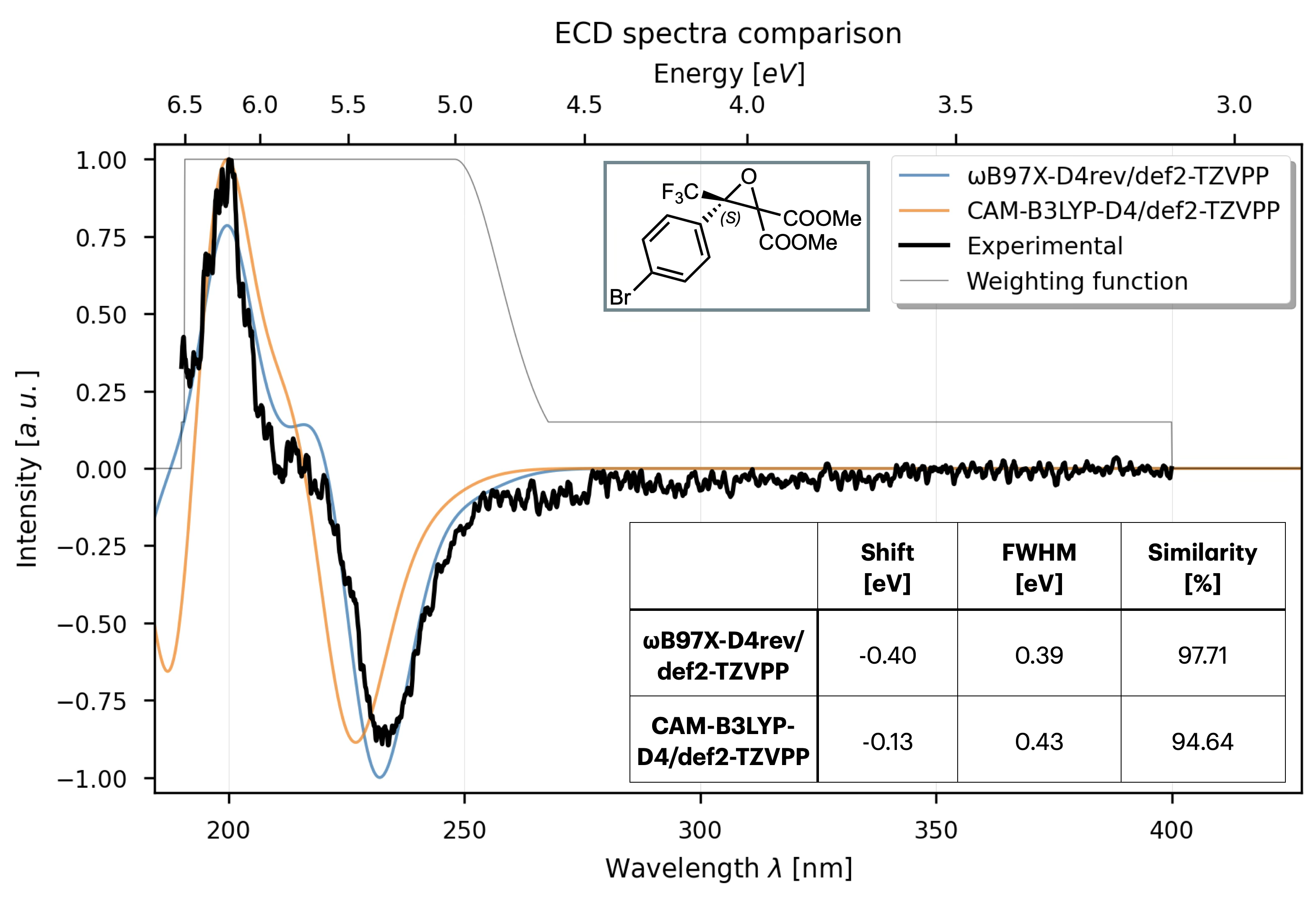

Example 2: VCD and ECD Spectra Simulation

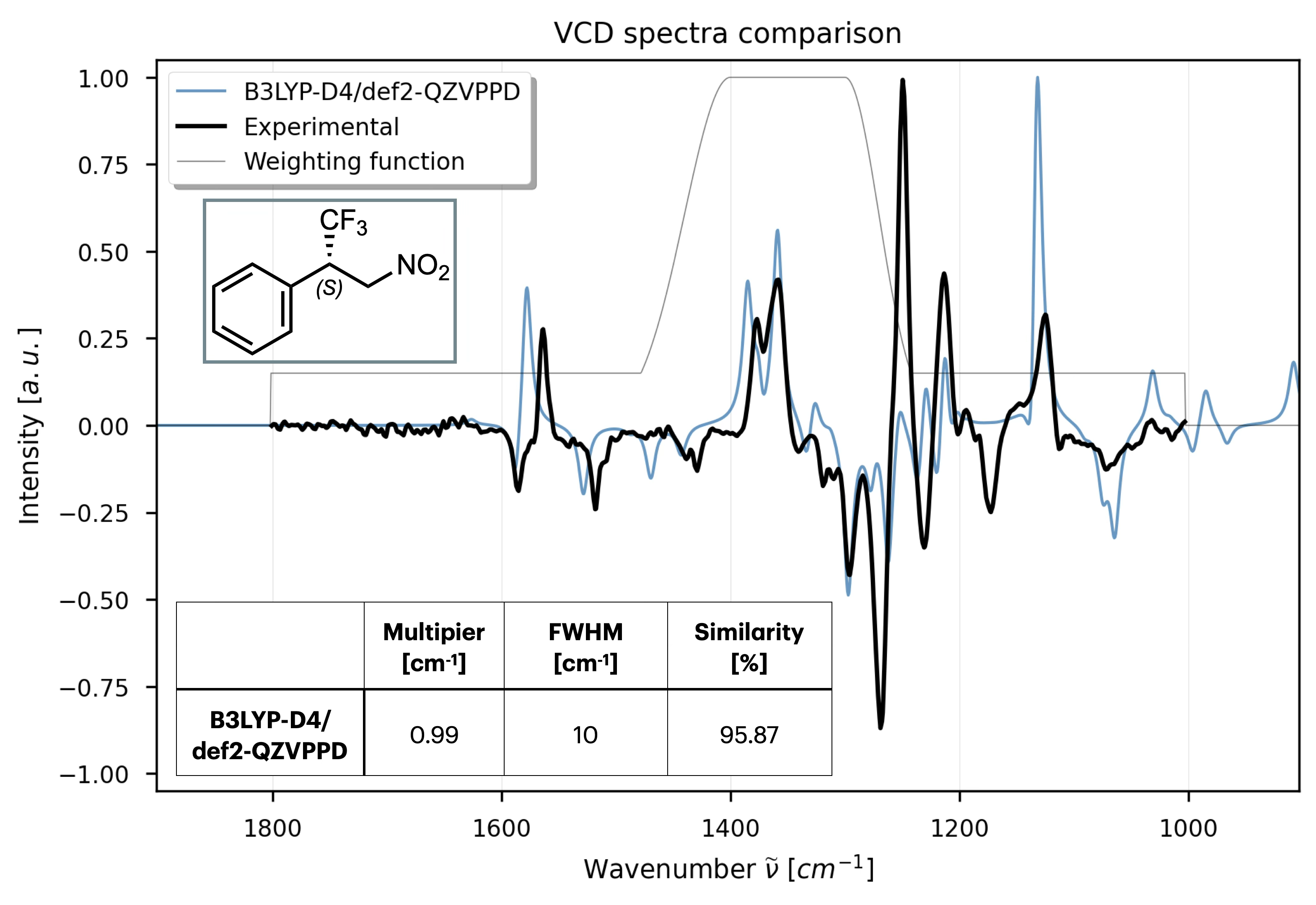

In this example, we simulate the Vibrational Circular Dichroism (VCD) and the Electronic Circular Dichroism (ECD) spectra of a chiral molecule and automatically fit it against an experimental reference file (vcd_ref.dat, ecd_ref.dat).
ensemble_analyzer -e ensemble.xyz -p protocol_vcd.json -cpu 44
{
"0": {
"functional": "B97-3c",
"basis": "def2-mTZVP"
},
"1": {
"functional": "r2SCAN-3c",
"basis": "def2-mTZVPP",
"opt": true,
"freq": true
},
"2": {
"functional": "wB97X-D4rev",
"basis": "def2-QZVPP"
},
"3": {
"functional": "B3LYP D4",
"basis": "def2-QZVPPD",
"freq": true
}
}
27
